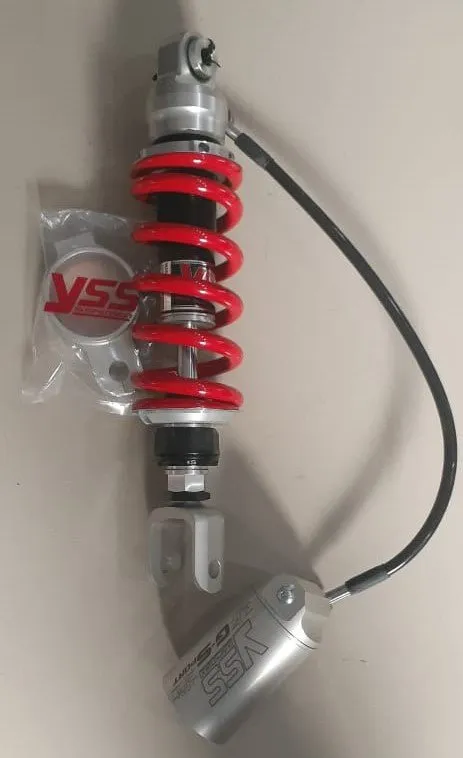

YSS Topline Rear Mono Shock (2011-2015)
Technical Specifications:
- Year: 2011-2015
- Product Group: Topline
- Shock Type: Rear Mono Shock
- Product Type: External Reservoir On Hose Gas Shock
- ABE: Not Applicable
Dimensions:
- Length: 295-305 mm
- Top Diameter: 10x30 mm
- Bottom Diameter: F.32x10 mm
- Spring Dimensions: 46-100-150 mm
- Piston Size: 30 mm
- Shaft Size: 12 mm
Adjustability Features:
-
Thread Spring Preload:
- Description: Fine-tune the spring tension through a threaded cylindrical shock absorber design.
- Adjustment: Turn the preload using an adjustable spring screw, securing the ring with a provided bolt.
-
Rebound Adjustable:
- Description: Control the recovery speed with a volume control knob, needle shaft, Free Bleed oil through hole, and a knob Rebound with a time adjustment dial.
-
Length Adjustable:
- Description: Increase the shock absorber length for customization.
- Options: Two types - upgradable to 10 mm or adjustable lengths within a range of /- 5 mm.
