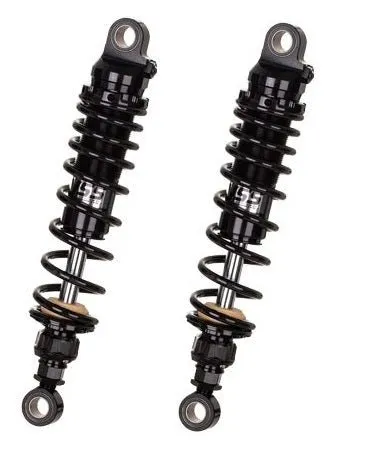

Technical Specifications - Black Edition Topline Rear Twin Shock (2011-2016)
Product Overview:
- Collection: Black Edition
- Year: 2011-2016
- Product Group: Topline
- Shock Type: Rear Twin Shock
- Product Type: Emulsion Gas Shock
- ABE: Yes
- Lowering: L.5
Dimensions:
- Length: 320-330 mm
- Top Diameter: 12.7x28 mm
- Bottom Diameter: 12.7x28 mm
- Spring Dimensions: 46-20-30-200 mm
- Piston Size: 36 mm
- Shaft Size: 16 mm
Adjustability Features:
-
Thread Spring Preload:
- Description: Allows fine-tuning of spring tension through a threaded cylindrical shock absorber design.
- Adjustment: Users can turn the preload using an adjustable spring screw, securing the ring with a provided bolt.
-
Rebound Adjustable:
- Description: Controls the recovery speed of the shock absorber, offering customization based on driver preferences.
- Components: Volume control knob, needle shaft, Free Bleed oil through hole.
- Adjustment: Time adjustment dial for precise customization.
-
Length Adjustable:
- Description: Provides flexibility by allowing an increase in the length of the shock absorber.
- Options: Two types - upgradable to 10 mm or adjustable within a range of /- 5 mm.
