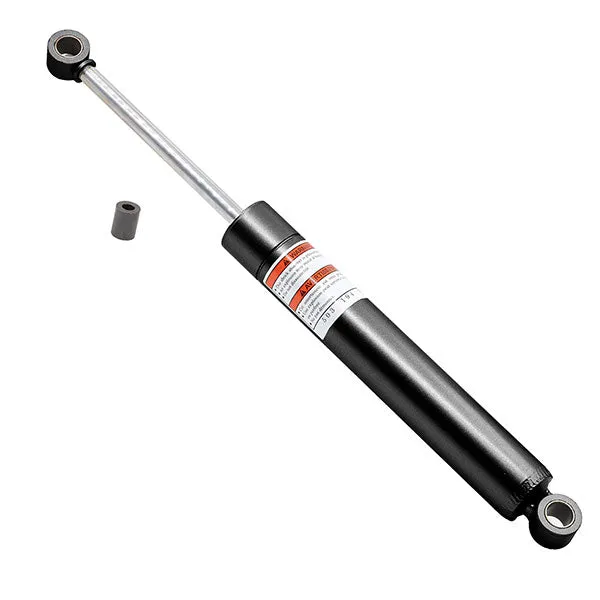

SPX Rear Shock | Ski-Doo
Features
- SPX Shocks are manufactured with OEM specs
- Heavy duty design
- Ready to mount out of the box
- We recommend referencing the OEM service manual for installation & safety information
- Nuts & bolts must be torqued to the OEM specified settings
- Nuts & bolts should also be periodically checked & lubed or tightened if needed
- Open: 440mm (17.32”) , Stroke:149mm (5.87”),
- Tube: 39.6mm (1.56”) , Shaft O.D:12.5mm (0.49”),
- Top/Bottom Hole: 15.9/16mm (0.62” / 0.63”),
- Top/Bottom Width: 19/19mm (0.75” / 0.75”),
- With 1pc Bushing
